Die Casting: High-Efficiency Precision Metal Forming
Die casting (pressure casting) is an efficient, precision metal-forming process. Its core principle: Injecting molten/semi-molten metal (e.g., aluminum/zinc/magnesium alloys) under high pressure (tens to hundreds of MPa) and high velocity into precision metal dies. The metal rapidly solidifies under pressure, forming near-net-shape components. The die determines final geometry, dimensions, and surface quality.
Key Advantages of Die Casting:
Ultra-High Productivity
Fully mechanized/automated process with short cycle times (seconds to minutes), ideal for mass production—yielding hundreds to thousands of parts hourly.
Complex Thin-Wall Capability
High pressure/velocity fills intricate cavities, producing parts with: Complex geometries Ultra-thin walls (0.5mm for Al / 0.3mm for Zn alloys) —unattainable by other casting methods.
Enhanced Strength & Density
High pressure refines grain structure during solidification, improving mechanical properties (strength/hardness) and density.
Exceptional Precision & Surface Finish
High-pressure filling replicates die details precisely. Achieves:

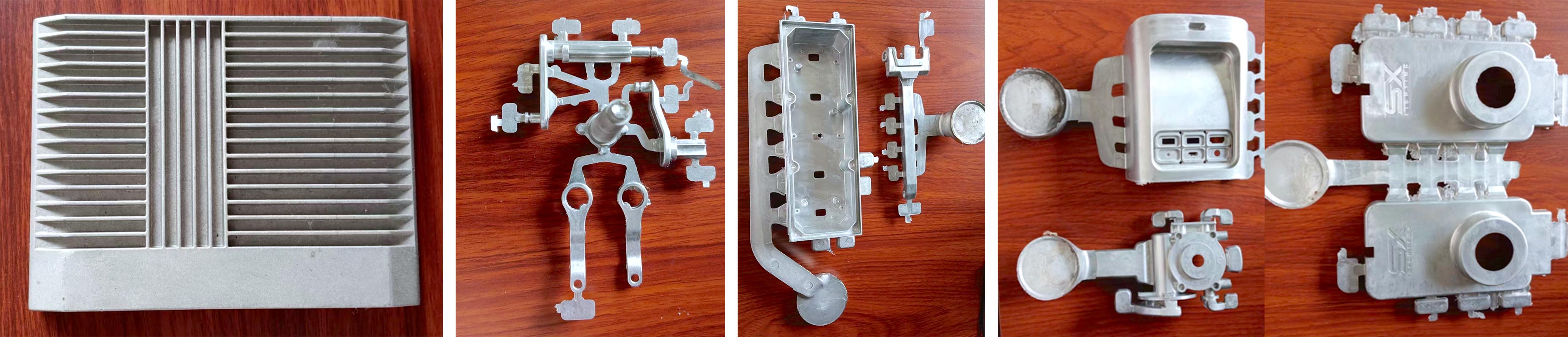

High tooling costs offset by extreme efficiency and material recycling, delivering low per-unit costs at scale. Our die-cast components serve: Automotive (engine blocks, transmission housings, structural parts) | 3C electronics (phone/laptop casings, brackets) | Power tools | Appliances | Hardware
One-Stop Service
Simply provide your 3D drawings, and we’ll issue a quotation. Upon contract signing, we immediately launch pilot production and deliver samples at maximum speed.
Injection Molding Production Process
Intensification & Cooling
After cavity fill: Intensification pressure maintains solidification under compression → Enhances density while minimizing shrinkage Circulating water rapidly cools the mold.
Mold Preparation & Preheating
Mounting precision-crafted metal molds (ejector & stationary dies) onto the die-casting machine. Preheating prevents premature solidification defects in molten metal.
Metal Melting & Holding
Heating alloys (Al/Zn/Mg) to molten state in furnaces, then transferring to the machine’s holding furnace for temperature maintenance.
Clamping & Injection
Dies securely close Injection plunger forces metered molten metal at high pressure (tens-hundreds MPa) and high velocity into the cavity through the gating system.
Intensification & Cooling
After cavity fill:
Intensification pressure maintains solidification under compression → Enhances density while minimizing shrinkage Circulating water rapidly cools the mold.
Mold Opening & Ejection
Post-solidification: Moving die retracts Ejector pins push the casting out.
Our Golden Triangle Advantage: Cost | Scale | Complexity
We integrate 21 advanced CNC machining centers to deliver comprehensive metal processing capabilities—from precision part machining and mold manufacturing to secondary processing of injection-molded components. Simultaneously achieving micron-level accuracy (±0.001 ft / 0.003mm) and industry-leading delivery speed, we provide seamless manufacturing support from R&D to mass production.
Per-Unit Cost Control
✓ Massive production capacity with ≤30-second cycle times ✓ Guaranteed 10,000+ units daily output → Effortlessly handles surge orders.
Precision & Surface Dual Mastery
✓ ±0.1mm dimensional tolerance:
Mold-flow analysis pre-compensates deformation
Closed-loop monitoring eliminates batch variance
✓ Ra 0.8μm mirror finish:
Nano-coated dies + vacuum die casting
Eliminates porosity/flow marks
→ Achieves plating/spray-ready Class-A surfaces.
Complex Geometry Freedom
✓ Breaks traditional casting limits to mass-produce:
Exceptional corrosion resistance → Medical devices, food machinery, chemical equipment. *Note: Austenitic SS (e.g., 304) requires specialized tools/processes due to severe work hardening.*
High strength-to-weight ratio | Corrosion resistance | Biocompatible. Primary use: Aerospace/medical implants. Challenge: Difficult machining (poor thermal conductivity, chip adhesion) | High cost.
FAQs
How soon can you ship the goods?
Lead time depends on production volume and material specifications. We will provide the shipping schedule together with the quotation upon receiving your 3D drawings!
Does Powder Metallurgy cause environmental pollution?
Absolutely not. Traditional machining achieves only 60%-80% material utilization, while Powder Metallurgy offers: ✓ >95% material utilization rate ✓ 99% material recycling rate.
How do you ensure quality?
✓ Always provide pre-production samples before mass production; ✓ Perform 100% final inspection prior to shipment.
Why choose us over other suppliers?
Houde's engineering team possesses extensive experience in automotive components. We deliver not just products, but also: ✓ Technical support ✓ Full-process production supervision ✓ Quality tracking services
