Powder Metallurgy: The Microscopic Magician of Metal
Powder metallurgy (PM) is an advanced manufacturing process that creates parts through "design-form-fuse" of metal powders. Its core principle resembles building with LEGO® bricks:

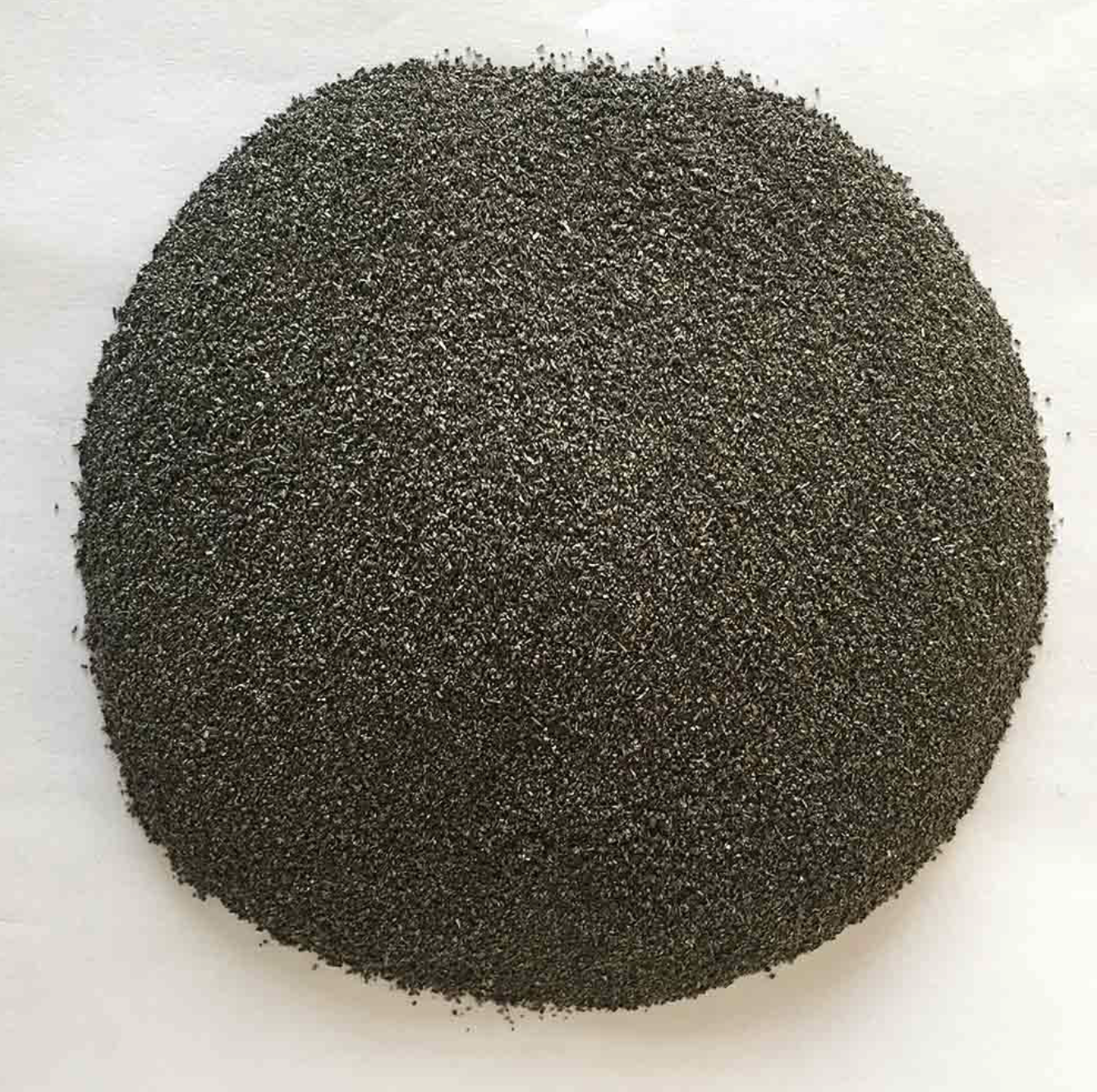

Powder Customization: Metals/alloys are pulverized into micron-scale particles (e.g., iron powder fine as flour), then precisely blended.
Compaction: Powders are pressed in dies under hundreds of tons of pressure into precision "green compacts".
Solid-State Bonding: Compacts are sintered in high-temperature furnaces (< melting point, e.g., 1120°C for iron alloys) within protective atmospheres. Atoms diffuse across powder boundaries—an invisible microscopic "handshake"—forging dense, robust components.
This Technology Shatters Traditional Metallurgy Limits:
Material Freedom
Fuses immiscible metals (e.g., tungsten-copper)
→ Rocket nozzles
Structural Precision
Net-shapes complex gears with ±0.02mm accuracy
Engineered Performance
Controls porosity to create oil-impregnated bearings with self-lubricating reservoirs
Sustainable Manufacturing
95% material utilization | >30% energy savings vs. conventional processes
One-Stop Service
Provide your 3D drawings and material composition ratios, and we’ll deliver a quotation. Upon contract signing, we initiate rapid pilot production and supply samples at maximum speed.
Powder Metallurgy Production Process
Raw Material Preparation
Selecting pure metals/alloys (Fe, Cu, Ti), pulverized into micron-scale powders via atomization, reduction, or mechanical crushing. Strict control of composition, particle size, and morphology ensures quality foundations.
Blending & Formulation
Precisely mixing metal powders with lubricants (e.g., zinc stearate), alloying elements, or binders to guarantee homogeneity for compaction readiness.Precisely mixing metal powders with lubricants (e.g., zinc stearate), alloying elements, or binders to guarantee homogeneity for compaction readiness.
Compaction
Loading blended powder into high-strength dies. Pressing under hundreds of MPa pressure via mechanical presses | isostatic technology → Forms dimensionally precise green compacts with handling strength.
High-Temperature Sintering
Sintering green compacts in protective atmospheres (H₂/N₂ or vacuum) at 70-90% of the metal's melting point. Atomic diffusion achieves metallurgical bonding → Enhances density, strength, and performance.
Lead time depends on production volume and material specifications. We will provide the shipping schedule together with the quotation upon receiving your 3D drawings!
Does Powder Metallurgy cause environmental pollution?
Absolutely not. Traditional machining achieves only 60%-80% material utilization, while Powder Metallurgy offers: ✓ >95% material utilization rate ✓ 99% material recycling rate.
How do you ensure quality?
✓ Always provide pre-production samples before mass production; ✓ Perform 100% final inspection prior to shipment.
Why choose us over other suppliers?
Houde's engineering team possesses extensive experience in automotive components. We deliver not just products, but also: ✓ Technical support ✓ Full-process production supervision ✓ Quality tracking services
